25HP CAUSA Rotary Screw Air Compressor 120gal (SS25)

Compressed Air USA (SS) Screw Series Air Compressors

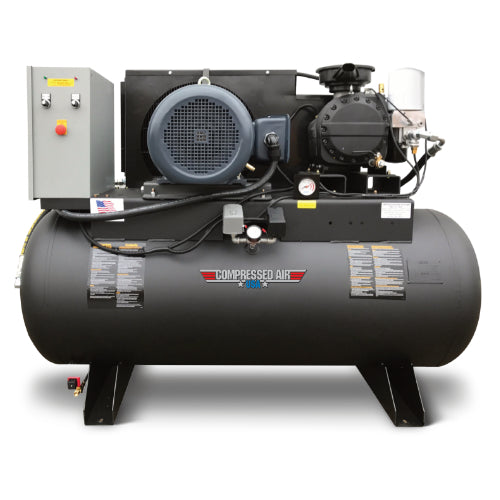

The SS25 model of CAUSA rotary screw air compressors has a horizontally mounted powder coated 120 gallon air tank and is 25HP, 102CFM at 150PSI and 108CFM at 125PSI, and available in various voltages to meet any buildings' electrical requirements.

Our SS line of rotary screw air compressors are designed for high air demand commercial and industrial applications, and with its 100% duty cycle it cannot be overworked. Built in Texas, the SS line of compressors feature analog controls and an open frame - making operation and service very user friendly. A very quiet machine with which the compressor's motor and pump are mounted directly on a 120gallon receiver. The SS line's quality components, simple controls, and easy maintenance deliver an efficient and reliable system to your facility.

FEATURES:

• 100% duty cycle, quiet operation
• 150 PSI standard operating pressure (100/125/175/190 PSI available upon request)
• Open frame, easy access for gauges and filters
• Spin-on oil filter and separator
• Low 3ppm oil carryover
• Heavy duty air filter
• Extended oil drain with ball valve for easy service
• Air/Oil Cooler, bolt-on design, easy removal for cleaning
• Airend manufactured with German rotary screw components
• Omega profile rotors, low tip speeds for efficiency and long life
• ASME tested powder coated steel receiver, horizontal orientation
• Single control solenoid operation
• Analog controls, simplified operation, no micro-processor, UL control components
• TEFC drive motor (3 phase only)
• Tank discharge ball valve
• Automatic tank drain
• Vibration isolation pads
• Built in Texas, USA
