20HP CAUSA Rotary Screw Air Compressor 120gal  (SS20)
  • SKU: CAUSA-SS20-12H3-X

20HP CAUSA Rotary Screw Air Compressor 120gal (SS20)

$11,079.72
DESCRIPTION
 HORSE POWER  20 HP
 CAPACITY  78 CFM @ 150psi, 88 CFM @ 125psi
 PRESSURE  150 PSI
 POWER  Electric
 VOLTAGE  208-230V, 460V
 PHASE  3
 FREQUENCY  60 Hz
 AMP DRAW 3 PHASE  54A @ 230V, 27A @ 480V
 TANK CAPACITY  120 GAL
 NOISE LEVEL  80 dBA
 DIMENSIONS  72 x 28 x 45 IN
 WEIGHT  925 LB
 WARRANTY  1 Year



Compressed Air USA (SS) Screw Series Air Compressors

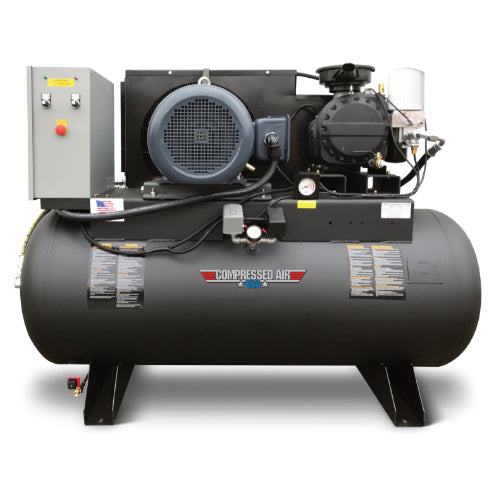

The SS20 model of CAUSA rotary screw air compressors has a horizontally mounted powder coated 120 gallon air tank and is 20HP, 78CFM at 150PSI and 88CFM at 125PSI, and available in various voltages to meet any buildings' electrical requirements.


Our SS line of rotary screw air compressors are designed for high air demand commercial and industrial applications, and with its 100% duty cycle it cannot be overworked. Built in Texas, the SS line of compressors feature analog controls and an open frame - making operation and service very user friendly. A very quiet machine with which the compressor's motor and pump are mounted directly on a 120gallon receiver. The SS line's quality components, simple controls, and easy maintenance deliver an efficient and reliable system to your facility.

FEATURES:

  • 100% duty cycle, quiet operation
  • 150 PSI standard operating pressure (100/125/175/190 PSI available upon request)
  • Open frame, easy access for gauges and filters
  • Spin-on oil filter and separator
  • Low 3ppm oil carryover
  • Heavy duty air filter
  • Extended oil drain with ball valve for easy service
  • Air/Oil Cooler, bolt-on design, easy removal for cleaning
  • Airend manufactured with German rotary screw components
  • Omega profile rotors, low tip speeds for efficiency and long life
  • ASME tested powder coated steel receiver, horizontal orientation
  • Single control solenoid operation
  • Analog controls, simplified operation, no micro-processor, UL control components
  • TEFC drive motor (3 phase only)
  • Tank discharge ball valve
  • Automatic tank drain
  • Vibration isolation pads
  • Built in Texas, USA
